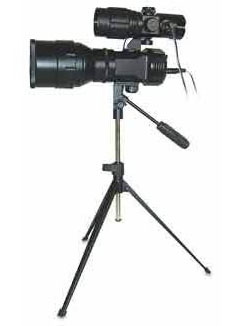

Digital Long-range day-night
System SM-3NVTV
Distance is 800 meters. Illumination - 0.01 lx
Distance is 1500 meters. Illumination - 0.0005 lx (starlight). Roof of the
house.
Distance is 1500 meters.Infrared laser illumination. Roof of the house.
Description
Digital
Long-range day-night System SM-3NVTV is a high performance day/night
TV-imaging system designed for long-range observation, surveillance and registration
of moving and immovable objects in daylight and at night. Built over exclusive
digital technology the SM-3NVTV operates during the night as well as day without
interruption of its operation.
Digital Long-range day-night System SM-3NVTV is
a 2nd generation device.
Digital Long-range day-night System SM-3NVTV specifications
| Magnification (LCD monitor 14 inch.) | 13X (20X optional) | |||
|
S/N ratio
in daylight at night |
46 dB 20 dB |
|||
| Max. distance of identification of a human form at illumination of 0.001 lx. |
1500m (2000 m) | |||
|
Resolution: |
420 TV lines 200 TV lines |
|||
| Field of view |
4.4 deg. (2.8 deg.)
|
|||
| Range of operation | 0.0005...30 000 Lx | |||
| Video output | Standard composite video 1.0Vp-p, 75 | |||
| Lens system | F1.5/110 mm (F1.6/170 mm optional) | |||
| Power supply | 12V, 400 mA | |||
| Weight | 1 kg (1.8 kg) | |||
| Temperature range, C | -20..+45 | |||
Digital Long-range day-night System SM-3NVTV
- Price:
- $2,866.00
