Mir 1V Lens for Olympus OM |
|
|

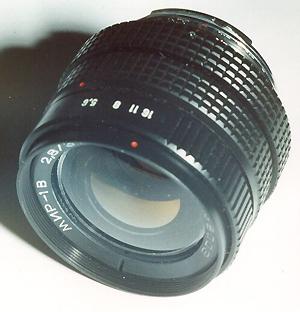

Mir 1V 2,8/37 Lens
Description:
Mir 1V 2,8/37 Lens
Mir 1V 2,8/37 Lens Specifications:
| Focal
length, mm: |
37
|
Relative
aperture
- minimum:
- maximum:
|
f/2.8
f/16
|
| Flange/film
distance, mm: |
45.5
|
| Angular
field of view: |
60°
|
|
Number
of elements:
|
6
|
| Minimum
taking distance, m: |
0.7
|
| Mount thread for Attachments: |
M49x0.75
|
| Dimensions, (Diameter x Length): |
59x56
|
| Weight,
kg: |
0.2
|
Jolos TM Mount
Adapter Olympus OM/M42 with Lens
For using Olympus OM cameras with M42 lenses (Praktica, Zenit). Set on the
adapter high-quality lens Jolos let you compensate flange bases difference of
all the M42 lenses completely. So focusing can be to infinity. It is actually
for those who use wide-angle lenses (for example, Zenitar 16/2.8, Mir 20 and
others). The high quality of the pictures is guaranteed.
It is possible to use Macro rings and other accessories.
Settings:
- Put red marks of the adapter and lens collar
together.
- Turn the adapter clockwise till the fixative
click.
- Set M42 lens.
Removing:
To
remove the adapter you should unpress fixative pin and turn the adapter anticlockwise.
|
