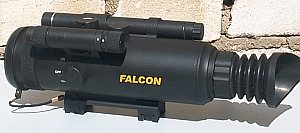

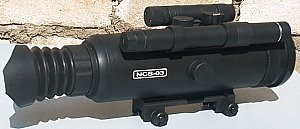

Night Vision Rifle Scope Falcon NCS-03 PRO Weaver Mount |
|
|
|
Night Vision Rifle Weapon Scope sights w/ Built-in IR and Weaver Mount Falcon NCS-03 Pro
The sight Falcon NCS-03 Pro is a night vision rifle scope of the 1st generation with the built-in infrared illumination. New features, improved from Falcon NCS-03.
$599
Request by e-mail
|
Night Vision Rifle Scope Falcon NCS-03 PRO Weaver Mount
Description
Falcon's intended for attitude on terrain and supports of aim shooting from
the hunting weapon in conditions of low intensity of illumination at temperature
of air from a -20 up to +40 oC (the temperature range depends from used batterys
and can be expanded by applying batterys of high quality).
The device has following features:
-Modern design;
-Collimating aiming reticle;
-The all-metal high-strength body;
-Is water-tight;
-Aiming reticle is always centered;
-Laser sight compatible;
-Ergonomic mounting;
-Electrostatic protection of Image-converter tube;
-The silent transducer of voltage.
The sight has protection against light overloads and electrostatic protection
of an image-converter tube boosting purity a field of vision. In the sights
the original system of gears of adjustment is applied, due to which one the
aimiing reticle always is in center of vision field. The mounting bracket is
hardly body-mounted. The system maintains impact loads up to 500g (SVD/TIGER/AK)
and main - it's tested by time. The sights have high-performance coated optics
specially intended for applying in night vision devices. The projection aiming
reticle of red colour is user-friendly and is well appreciable in any conditions
of observation. The devices are extreme simple to service, will use widely widespread
and cheap batterys and will be efficient in any climatic conditions.
Specifications:
Mount type Weaver
Image tube GEN I+
Magnification 2.5x
Relative aperture 1500
Adjustment step 1/9 moa
Angle of view 10o
Objective lens diameter 57 mm
Exit pupil distance 50 mm
Focusing limit from 10 m to infinity
Diopiter adjustments -4/+4
Supply voltage 3v (2xAA)
IR illuminator built-in
Temperature -20 to +40oC
Overall dimensions with eye chade 300x96x100 mm
Weight 1.2 kg
Delivery set:
- NEW Falcon sight 1 pcs.
- Operation manual in English 1 pcs.
- Case 1 pcs.
- Weaver rail 1 pcs.
- Bolt 3 pcs.
Compatibility:
Rifles with standard Weaver mount.
|
