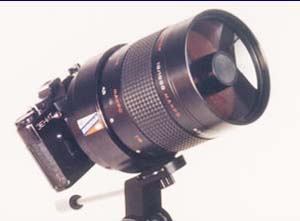

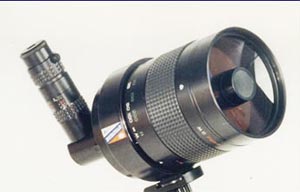

Telescope "Astro Rubinar - 100"
 |
The "Astro-Rubinar-100" telescope is designed for photography and
observations of terrestrial far-away objects (photo-hunting, taking close-up
pictures of landscapes, archittectural pieces, sports competitions, etc.)
as well as amateur astronomical observations and photography of celestial
objects. |
 |
|
The catadioptric lens with multilayer antireflection coatings of optical surfaces
makes it possible to take pictures on black-and-white and colour films with
24x36 mm frame size.
|
Ocular focal length (mm)
|
the ranges of telescope (magnifications) / (fields-of-view)
|
|
without teleconverter
|
with teleconverter
|
|
30
|
(22..54) / (1o..33')
|
(44..108) / (33'..16')
|
|
15
|
(44..110) / (1o..23')
|
(88..220) / (30'..11')
|
|
9.4
|
(70..175) / (52'..21')
|
(140..350) / (26'..10')
|
Specifications:
| Telescope "Astro Rubinar - 100" |
without teleconverter
|
with teleconverter
|
| clear aperture (mm) |
100
|
100
|
| focal length (mm) |
1000
|
2000
|
| relative aperture |
1/10
|
1/20
|
| linear field-of-view (mm) |
42
|
42
|
| angular field-of-view |
2°30'
|
1°15'
|
| near focus (m) |
4
|
4
|
| resolution at "infinite" distance with films resolving 135 lines/mm, no
less than, in lines/mm: |
-
|
-
|
| in the center |
50
|
-
|
| in zone (y=15 mm) |
40
|
-
|
| at edge (y=19 mm) |
35
|
-
|
| photo camera or eyepiece holder attachment type |
thread M42x1
|
thread M42x1
|
| optical axis bend in the eyepiece holder with diagonal prism |
90°
|
90°
|
| tripod mounting attachment thread |
1/4''
|
1/4''
|
| price |
689 USD
|
699 USD
|
Telescope "Astro Rubinar - 100"

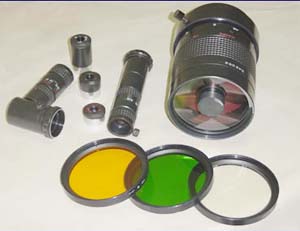

Delivery set:
- Objective 'MC Rubinar 10/1000 macro' 1 pc
- Light filters 3 pcs
- Ocular unit direct 1 pc
- Ocular unit with prism 1 pc
- ocular f=30 mm 1 pc
- ocular f=15 mm 1 pc
- ocular f=9.4 mm 1 pc
- Case for ocular units and oculars 1 pc
- Plastic case for telescope 1 pc
|
 |
Telescope is supplied in set without a tripod. Teleconverter
'TKL-2' is supplied separately.
Assembled Amateur Telescopes
Assembled amateur telescopes on basis of off-the-shelf optical units: lenses
and eyepiece attachment "Tourist-FL".
 |
In accordance with customers demands our company offers to assembly amateur
telescopes having necessary features and optical lay-out of ready-for-use
mass fabricated optical units like camera lenses
and eyepiece attachment "Tourist
FL". With purpose to obtain desired characteristics of an assembled
telescope a customer can choose an appropriate objective. Assembled amateur
telescopes are mounted to any standard tripods using thread attachments
on lenses. |
Assembled Amateur Telescopes.
Delivery set:
- Rubinar-10/1000 or MTO-11CA or Rubinar-5.6/500 or Rubinar-4.5/300 or Rubinar-8/500
or 3M-5CA lens
- Light filters
- Front lid
- Rear lid
- Lens hood
- Case
- Tourist-FL eyepiece attachment
Optional designs and major technical parameters of assembled telescopes depending
on a lens choice:
|
Lenses
|
Price (usd)
|
-
|
|
|
474 USD
|
|
|
|
460 USD
|
|
|
|
434 USD
|
|
|
|
310 USD
|
|
|
|
320 USD
|
|
|
|
290 USD
|
|
The assembled amateur telescope is supplied in set without
tripod. See more detailed information about technical characteristics of the
lenses and eyepiece attachment "Tourist
FL" .
|
