MC Zenitar-M 2,8/16 Fisheye for Canon EOS with electronic focus confirmation |
|
|
Fisheye

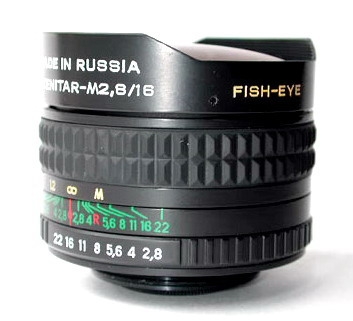

MC Zenitar-M 16mm f/2.8 Lens
Description:
The Zenitar-M 16mm f2.8 Fisheye lens is a compact short-focus, super
wide-angle lens that provides you with a full-frame exposure (not a circle spot
on the frame) that shows an ultra wide-angle 180 degree field of view. It is
ideal for architecture, landscape, and group pictures.
!!! You can make your Zenitar lens into a high quality super wide angle
rectilinear lens by using the Lens
Corrector tool from Proxel
The fisheye lens is fitted with an instant opening diaphragm
and equipped with a set of light filters. Mounting
on a camera - a screw mount M42x1 type with 45.5mm flange/film distance.

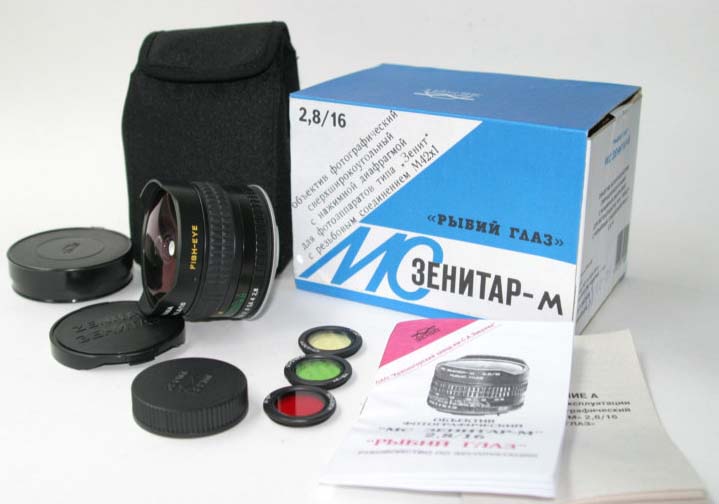

The basic 16mm Zenitar-M fisheye lens kit includes:
- Zenitar-M 16mm f/2.8 Fisheye Lens
- Front and rear lens caps
- Lens case and strap
- Three 26.5mm filters (light red, light yellow, dark
yellow)
- Filter case
- Manual
Fisheye MC Zenitar-M 16mm f/2.8 Lens Specifications:
|
Focal length, mm:
|
16
|
|
Relative aperture:
- maximum
- minimum
|
f/2.8
f/22
|
|
Angular field of view
(to a frame diagonal):
|
180°
|
|
Number of elements/groups:
|
11/7
|
|
Minimum taking distance, m:
|
0.3
|
|
Lens fitting thread:
|
M 26.5x0.5
|
|
Dimensions (from a base face), mm:
|
M 63x49
|
|
Weight, kg:
|
0.31
|

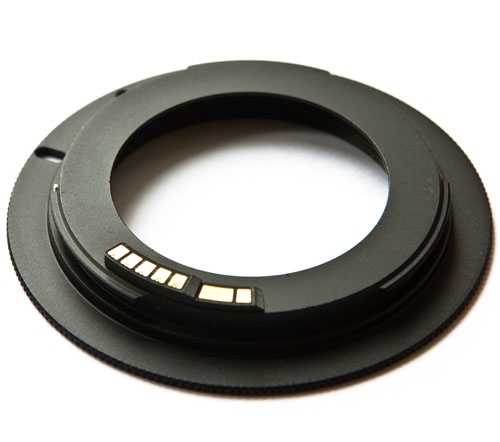

M42x1-Canon
EOS adapter with electronic focus confirmation
This adapter allows the use of M42 (Pentax Screw Mount) lenses on any Canon
EOS camera body. Such lenses are made by Praktica and Zenit and are also easily
found on the used lens market from such manufacturers as Pentax.
Although all M42 lenses are manual focus, this adapter retains the operation
of the camera's electronic "in-focus" indicators - a green circle appearing
in the viewfinder and an audible "beep" - to confirm best focus. If the shutter
is 1/2 depressed and the lens manually focused, the camera will indicate when
best focus has been achieved. Simpler M42 adapters lacking electronic contacts
do not allow the camera to provide any electronic focus confirmation and focus
can only be judged by observing the image on the viewfinder screen. This can
be quite difficult, especially with slow and/or wideangle lenses.
Since M42 mount lenses have a manually operated aperture, camera modes which
control exposure by automatically adjusting aperture are not available. However
full autoexposure operation is available in Aperture Priority mode and the camera
can also be operated in manual exposure mode using in-camera metering. In manual
mode the shutter speed is set on the camera, while the aperture is set on the
lens. In Aperture priority mode the aperture is set on the lens and the camera
will automatically set the shutter speed to provide the correct exposure.
M42 lenses mounted on EOS bodies via this adapter do not interfere with camera
operation and allow the use of mirror lockup.
Written by Bob Atkins
"How
to use" by Bob Atkins

Canon EOS cameras (from http://en.wikipedia.org)
Digital cameras
Prior to the introduction of the EOS D30 digital SLR, Canon in collaboration
with Kodak produced four digital SLRs by modifying the internals of the EOS-1N
film SLR. These four digital SLRs had a Canon EOS body and thus can accept EF
lenses, while the image sensor and electronics were designed and built by Kodak.
The four cameras were:
| Model |
Release date |
| EOS DCS3 |
July 1995 |
| EOS DCS1 |
December 1995 |
| EOS D2000/Kodak DCS520 |
March 1998 |
| EOS D6000/Kodak DCS560 |
December 1998 |
List of Canon EOS digital cameras
| Model |
Release date |
| EOS D30 |
October 2000 |
| EOS-1D |
December 2001 |
| EOS D60 |
March 2002 |
| EOS-1Ds |
November 2002 |
| EOS 10D |
March 2003 |
| EOS 300D/Digital Rebel |
September 2003 |
| EOS-1D Mark II |
April 2004 |
| EOS 20D |
September 2004 |
| EOS-1Ds Mark II |
November 2004 |
| EOS 20Da |
February 2005 |
| EOS 350D/Digital Rebel XT |
March 2005 |
| EOS 5D |
August 2005 |
| EOS-1D Mark II N |
August 2005 |
| EOS 30D |
February 2006 |
Film cameras
This is a list of the 35 mm and APS Canon EOS models in order
of introduction:
| Model (US) |
Model (Europe) |
Model (Japan) |
Release date |
| EOS 650 |
EOS 650 |
EOS 650 |
March 1987 |
| EOS 620 |
EOS 620 |
EOS 620 |
May 1987 |
| EOS 750 |
EOS 750 |
EOS 750 |
October 1988 |
| EOS 850 |
EOS 850 |
EOS 850 |
October 1988 |
| EOS 630 |
EOS 600 |
EOS 630 QD |
April 1989 |
| EOS-1 |
EOS-1 |
EOS-1 |
September 1989 |
| EOS RT |
EOS RT |
EOS RT |
October 1989 |
| EOS 10S |
EOS 10 |
EOS 10 QD |
March 1990 |
| EOS 700 |
EOS 700 |
EOS 700 QD |
March 1990 |
| EOS Rebel/Rebel S |
EOS 1000F QD |
EOS 1000 QD |
October 1990 |
| EOS 10S commemorative kit |
EOS 10 |
EOS 10 QD |
August 1991 |
| EOS Elan |
EOS 100 |
EOS 100 QD |
August 1991 |
| EOS Rebel II/SII |
EOS 1000FN QD |
EOS 1000S QD |
March 1992 |
| EOS A2/A2e |
EOS 5 |
EOS 5 QD |
November 1992 |
| EOS Rebel XS |
EOS 500 |
EOS Kiss |
September 1993 |
| EOS Rebel X |
- |
- |
November 1993 |
| EOS-1N |
EOS-1N/1N HS/1N DP |
EOS-1N/1N HS/1N DP |
November 1994 |
| - |
EOS 5000 |
EOS 888 |
January 1995 |
| EOS-1N RS |
EOS-1N RS |
EOS-1N RS |
March 1995 |
| EOS Elan II/IIe |
EOS 50/50e |
EOS 55 |
September 1995 |
| EOS Rebel G |
EOS 500N |
New EOS Kiss |
September 1996 |
| EOS IX |
EOS IX |
EOS IX E |
October 1996 |
| EOS IX Lite |
EOS IX 7 |
EOS IX 50 |
March 1998 |
| EOS 3 |
EOS 3 |
EOS 3 |
November 1998 |
| - |
EOS 3000 |
EOS 88 |
March 1999 |
| EOS Rebel 2000 |
EOS 300 |
EOS Kiss III |
April 1999 |
| EOS 1V |
EOS 1V |
EOS 1V |
March 2000 |
| EOS Elan 7/7e |
EOS 30 |
EOS 7 |
October 2000 |
| - |
- |
EOS Kiss III L |
November 2001 |
| EOS Rebel XS N |
EOS 3000N |
Canon EOS 66 |
February 2002 |
| EOS Rebel Ti |
EOS 300V |
EOS Kiss 5 |
September 2002 |
| EOS
Rebel K2 |
EOS 3000V |
EOS Kiss Lite |
September 2003 |
| EOS Elan 7N/7NE |
EOS 30V/33V |
EOS 7s |
April 2004 |
| EOS Rebel T2 |
EOS 300X |
EOS Kiss 7 |
September 2004 |
|
