Fisheye MC Zenitar-M 16mm f/2.8 Lens for Sony Alpha/Minolta AF |
|
|
Fisheye

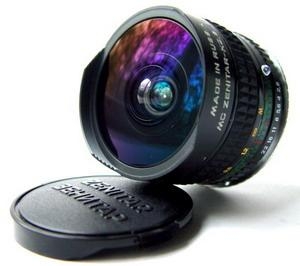

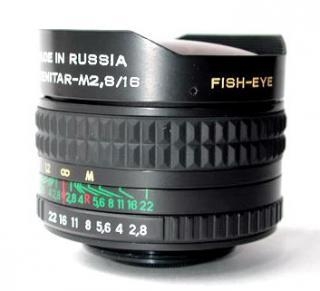

MC Zenitar-M 16mm f/2.8 Lens
Description:
The Zenitar-M 16mm f2.8 Fisheye lens is a compact short-focus, super
wide-angle lens that provides you with a full-frame exposure (not a circle spot
on the frame) that shows an ultra wide-angle 180 degree field of view. It is
ideal for architecture, landscape, and group pictures.
!!! You can make your Zenitar lens into a high quality super wide angle
rectilinear lens by using the Lens
Corrector tool from Proxel
The fisheye lens is fitted with an instant opening diaphragm
and equipped with a set of light filters. Mounting
on a camera - a screw mount M42x1 type with 45.5mm flange/film distance.
The basic 16mm Zenitar-M fisheye lens kit includes:
- Zenitar-M 16mm f/2.8 Fisheye Lens
- Front and rear lens caps
- Lens case and strap
- Three 26.5mm filters (light red, light yellow, dark
yellow)
- Filter case
- Manual
Fisheye MC Zenitar-M 16mm f/2.8 Lens Specifications:
|
Focal length, mm:
|
16
|
|
Relative aperture:
- maximum
- minimum
|
f/2.8
f/22
|
|
Angular field of view
(to a frame diagonal):
|
180°
|
|
Number of elements/groups:
|
11/7
|
|
Minimum taking distance, m:
|
0.3
|
|
Lens fitting thread:
|
M 26.5x0.5
|
|
Dimensions (from a base face), mm:
|
M 63x49
|
|
Weight, kg:
|
0.31
|

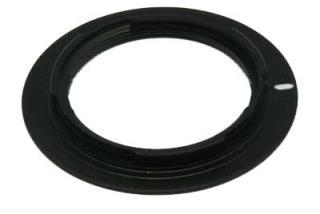

Jolos TM Mount Adapter
Sony Alpha (DSLR-A100 )/Minolta AF/M42
For using auto focus Sony Alpha/Minolta cameras with M42 lenses (Praktica,
Zenit). Metric scale M42 keeps its meanings due to compensation of the flange
bases difference. Therefore focusing can be to infinity.
You
should remember that the pusher with the fixed ring doesn’t work, so diaphragm
control of the lens is set manually.
Bear
in mind that aperture pusher is not pushed. It is possible to use Macro rings
and other accessories.
Settings:
- Put red marks of the adapter
and lens collar together.
- Turn the adapter clockwise
till the fixative click.
- Set M42 lens.
Removing:
To
remove the adapter you should unpress fixative pin and turn the adapter anticlockwise.
Note:
Working
with M42 lenses acknowledgement of the focusing with green light is not made.
The aperture is not set. Expo-modes:
- P (program) – identical to
Av mode;
- Tv (flash priority) – doesn’t
work;
- Av (diaphragm priority) –
works as usual;
- M (manual) – aperture and
flash are changed. Inaccuracy of exposure defining is indicated by expo-correction.
|
