Description

The devices for personal use are represented by following models:

  • AngioScan-01M (Personal version) is a device for operating under PC control;
  • AngioScan-01P, a portable device. The main operation mode is a stand-alone test that includes test execution, parameters calculation and conclusion generation. The alternate operation mode is under PC control.

Medical devices for personal/home use are designed for non-specialists in the field of cardiovascular diagnosis. It can be private individuals willing to test the health condition of their families as well as professionals in adjacent to cardiovascular fields: sport trainers, fitness center specialists, nutrition supplements sellers and others.

The devices assess the following parameters:

  • pulse rate;
  • stiffness of arterial wall;
  • analysis of pulse wave type;
  • biological age of the vascular system;
  • stress index.

To understand the key difference between the devices focus your attention on such features as a stand-alone operation mode and a possibility to replace the sensor.

Stand-alone operation mode

AngioScan-01P is the only device with a stand-alone operation mode. The device has a built-in battery, display and memory card, so it can perform test at any place and time. It’s a portable device because of its very small size and weight so you can always literally have it "at hand". Due to its convenience you can use any free minute to perform the test. Alternatively AngioScan-01P can operate under PC control.

AngioScan-01M (personal version) operates only with a PC (under Windows) with AngioScan Personal software installed. Unlike AngioScan Professional software, the personal version eliminates the need for a deep dive into the specifics of medical terminology. AngioScan Personal software provides a single combined test with text output assessing the state of the vascular system.

Sensor replacement

AngioScan-01P has an external sensor which plugs to a device enclosure through a standard connector. Given that the sensor is exposed to mechanical stress it has a heightened possibility of failure due to mechanical breaking. In such a case it is enough to change the sensor in order to recover a functionality of the device.

AngioScan-01P has a monolithic body with a built-in sensor. In case of mechanical damage of the body a repair or a complete replacement of the device will be necessary. Although the functions of the devices are quite equal, approximate wear life of AngioScan-01M is higher than in case of AngioScan-01P. Therefore, we recommend to use AngioScan-01M for stationary use by non professionals (eg. in fitness centers, sport schools, etc) and also when a significant number of tests is needed. AngioScan-01P is an effective and convenient device for personal monitoring of cardiovascular health and home use, as well as for achieving a better mobility.

Medical equipment AngioScan for home/personal use is valuable and useful devices for everyone in the world. The devices help not only to assess the state of the heart and cardiovascular system, but also demonstrate how food, smoking, physical exercises and lifestyle influence the health. If you are starting a healthy lifestyle you keep watch over the positive changes of your vascular system characteristics. Thereby AngiosCan is a strong motivation to keep on leading a healthy life!

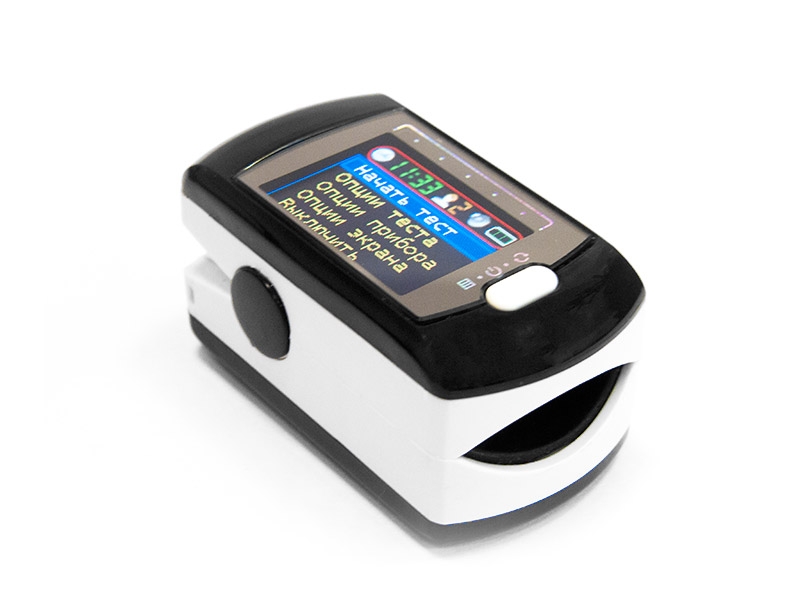

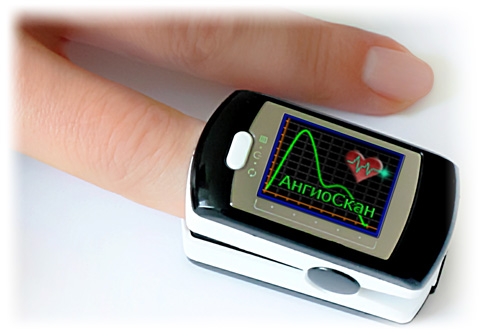

AngioScan-01P, personal device for cardiovascular system diagnostics

What is it for?

  • • For early diagnosis of cardiovascular diseases, such as atherosclerosis, essential hypertension, heart failure, diabetes, coronary arterial disease, high risk of stroke and heart attack;
  • • For monitoring the effectiveness of cardiovascular therapies, food supplements and physical exercises.

What kind of parameters does AngioScan-01P measure?

A non-invasive test takes 2-minutes and includes the following:

  • An evaluation of biological age of the vascular system;
  • An assessment of stiffness of arterial wall (which is dependent on deposition of cholesterol, calcination etc.);
  • An assessment of stress level;
  • An evaluation of pulse rate.

The result is given in graphics and easily understandable color scale. If you connect the device to your PC, you will get a detailed medical report on the state of your cardiovascular system. AngioScan-01P supports up to 9 users in a stand-aone mode, so it is a perfect diagnostic device for the whole family.

How often tests should be performed?

It is recommended to perform test at least once a week. Important parameters that are assessed by AngioScan-01P are changing very fast. By monitoring the changes, you will be able to early diagnose the risk of cardiovascular diseases 5-6 years before their manifestation.

Regular monitoring of test results is a very strong motivation for living a healthy life. Test results will sensitively demonstrate you the effect of your new life style or therapy on your health. All alterations are shown in the form of graphs.

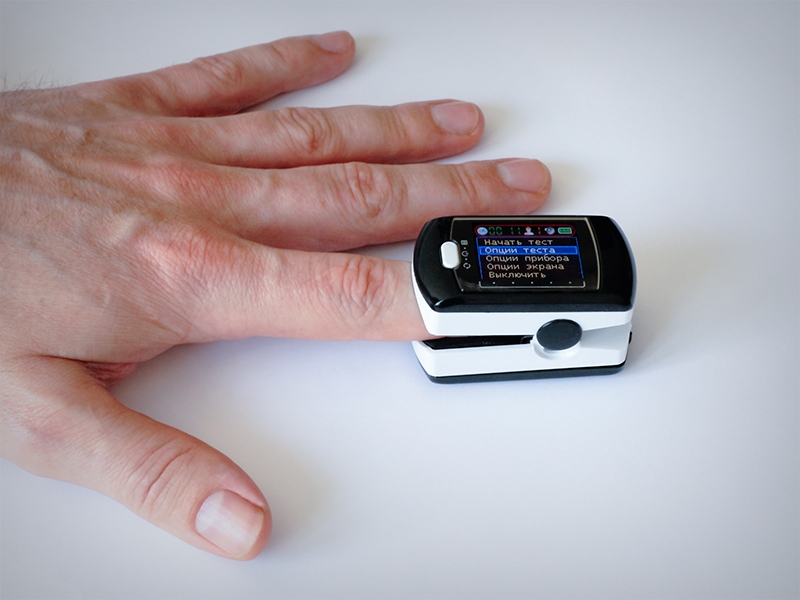

An example of the using AngioScan-01P in a stand-alone mode

With AngioScan-01P you can monitor your health in any place and at every appropriate time. More than some dozens of tests can be performed without charging the battery. Nearly 1000 test results can be stored in a built-in memory of the device.

Test takes 2 minutes. During the test pulse waves with sound signals are displayed. Test results are automatically saved in a built-in device memory.

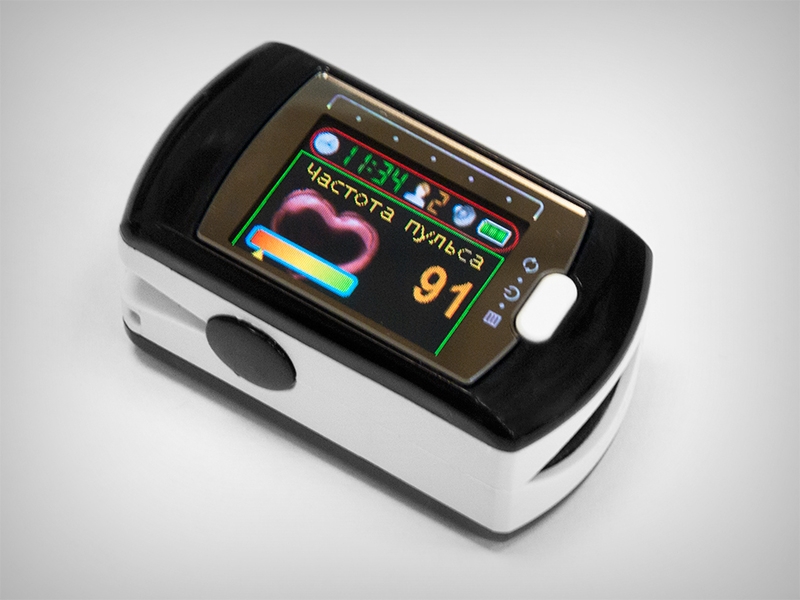

To consult the results at the end of the test push successively a device button. The pictures show the examples of how biological age of vessels and stress level are displayed.

After two or more tests are performed you will be able to see trends of your cardiovascular system parameters alterations. The pictures show the examples of stiffness of arterial wall and stress level displayed.

Using device with a PC

A supporting computer program extends device’s capabilities. Using “Angioscan Personal” software you can operate with data of all device users, display and print a detailed report concerning any test result, view and print detailed graphs of the trends of parameters alterations.

Technology is protected by a Russian patent. In present the patent procedure in U.S.A. and E.U. is turning in a national stage.

AngioScan-01M (personal version) operates only with a PC (under Windows) with AngioScan Personal software installed. Unlike AngioScan Professional software, the personal version eliminates the need for a deep dive into the specifics of medical terminology. AngioScan Personal software provides a single combined test with text output assessing the state of the vascular system.

Sensor replacement

AngioScan-01P has an external sensor which plugs to a device enclosure through a standard connector. Given that the sensor is exposed to mechanical stress it has a heightened possibility of failure due to mechanical breaking. In such a case it is enough to change the sensor in order to recover a functionality of the device.

AngioScan-01P has a monolithic body with a built-in sensor. In case of mechanical damage of the body a repair or a complete replacement of the device will be necessary. Although the functions of the devices are quite equal, approximate wear life of AngioScan-01M is higher than in case of AngioScan-01P. Therefore, we recommend to use AngioScan-01M for stationary use by non professionals (eg. in fitness centers, sport schools, etc) and also when a significant number of tests is needed. AngioScan-01P is an effective and convenient device for personal monitoring of cardiovascular health and home use, as well as for achieving a better mobility.

Medical equipment AngioScan for home/personal use is valuable and useful devices for everyone in the world. The devices help not only to assess the state of the heart and cardiovascular system, but also demonstrate how food, smoking, physical exercises and lifestyle influence the health. If you are starting a healthy lifestyle you keep watch over the positive changes of your vascular system characteristics. Thereby AngiosCan is a strong motivation to keep on leading a healthy life!

AngioScan-01P Specification

You can load the English manual here https://www.angioscan.ru/en/attachments/Professional.pdf

Product Name:

Personal single-channel diagnostic device for analysis of cardiovascular system ANGIOSCAN-01P

Delivery Set:

Hardware:

ANGIOSCAN-01P device, USB cable, PC (optional)

Software:

CD-ROM with AngioScan Personal software and USB drivers for PC

Regulating Documents:

Technical Requirements:

TU 9442-001-305770000090620-2008

Certificate of Compliance:

№ ROSS RU.0001.11ИМ25 from 27.03.2009

Registration Certificate:

FSR № 2008/03976 from 26.12.2008

Specification:

Number of inputs for photoplethysmography sensor connection:

1

Allowable range of operating temperature:

+20 .. +40 °С

Allowable range of relative humidity:

20% .. 80%

Power supply:

Build-in Lithium Polymer battery 620 mA/hour

Supply voltage:

3.7 .. 4.1 V

Power source:

USB port of a PC or power supply +5 V, 500 mA

Power Consumption:

200 mA

Display Type:

OLED, 128 x 96 pixels, 64К colors

Time of continuous work till battery discharge:

- 0 level of brightness OLED: 10 hours;
- 5th level of brightness OLED: 3 hours;

Build-in FLASH Memory:

4 Gb

Build-in Audio Indicator:

Single-tone

Potential Risk Class:

2a

USB Port Connector Type:

USB Mini Type B

Maximum weight (without sensors):

0.2 kg

Device enclosure size:

58 x 32 x 30 mm.

Languages: Russian, English menu
Specification of Analog to Digital Conversion:

Conversion accuracy, bits:

16

Sampling rate:

1000 Hz

Sensor valid output frequency range:

3 .. 120 kHz

PC Hardware requirements


(optional, the device can be used


in a stand-alone mode):

Type of a PC or laptop:

IBM PC compatible

Operating System:

Windows XP, Windows Vista, Windows 7 (32 bit only), Windows 8

Processor:

Intel P4 and above

RAM:

from 1 GB

Display:

1024 х 768, 256 colors

HDD space:

50 Mb

Drive:

CD-ROM

USB Port:

USB Port Type A
