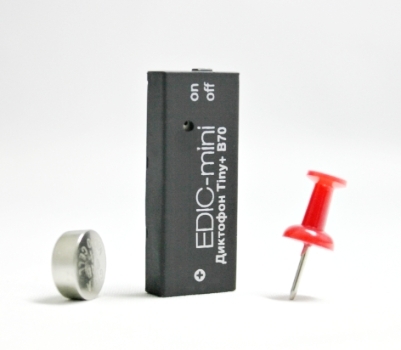

Edic-mini Voice Recorder Tiny+ B70-300h

In our new development item we surpassed our own record listed in the Guinness Book of Records (EDIC-mini Tiny A31 - 29x15x12). We developed one more compact, light and miniature professional recorder - Edic-mini Tiny+ B70. Its dimensions are 37x15x7 mm, weight only 7 grams. In spite of its small size, B70 combined all the characteristics providing high recording quality, ease of use and a broad set of functions.

Modifications: B70-300h (in the mode 8kHz, u-Law)

Main characteristics:

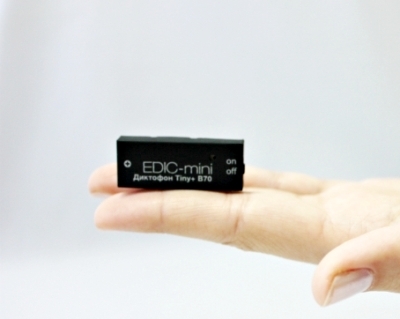

• Miniature size (37*15*7 mm) and light weight makes the device is very mobile and easy to use.

• The recorder's microphone is distinguished by high sensitivity and low noise level providing professional audio recording from up to 12 meters.

• Low power consumption: in spite of miniature size the device is able to operate contituously up to 10 hours.

• The device is extremely simple to use: recording is easily and quickly activated using a slide switch.

• B70 supports the system of digital markers: inaudible markers are added to the record allowing it to identify the record’s time and date as well as the recorder’s type and its serial number; and the attempts to modify it.

• Application of the USB 2.0 adapter allows it to quickly upload records onto the PC.

• With the help of special software the user can easily adjust the quality and time of recording, enable and configure professional functions depending on the surrounding conditions and in accordance with the requirements.

Main functions:

• Continuous high-quality audio recording without signal's compression

• 4 Gb or 8 Gb of built-in memory and up to 150/300 hours of recording time (in the mode 8kHz, u-Law)

• RL43 battery provides up to 10 hours of continuous operation

• Recording is enabled with Switch, Voice Activation System (VAS), or daily and once timers

• LED Indication of the recorder's operation

• Linear and circular record modes

• The system of digital markers, allowing it to determine the authenticity of record

• High-speed USB 2.0 (up to 7 Mb/s)

• Built-in clock and calendar

Additional options

To operate the recorder an updated version of the RecManager program is used, which functions allow it to:

• playback, upload to the PC, edit and erase records

• configure recording, and set the desirable ratio of quality/duration

• connect and configure optional functions and options of the recorder (timers, VAS etc)

• playback records directly from the recorder without uploading them to the PC

• cut and perform operations with the selected part of record

• select and playback only the desirable record parts performed with VAS omitting parts without any voice information

• built-in tips make operation of the program very easy and convenient.

To process sound and work with records we have developed the SoundProcessor program intended to:

• process records to improve their intelligibility, suppressing noise etc

• the option to automatically transform records to text using Google technology.

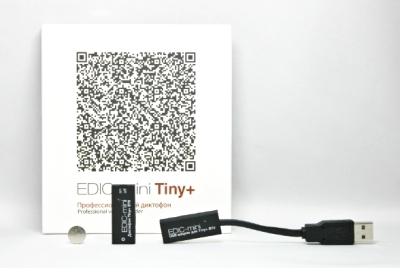

Delivery set:

Audio recorder

USB adapter

LR43 Battery

Instructions
