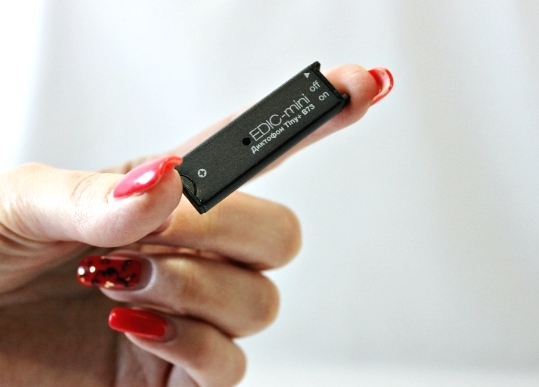

Edic-mini Voice Recorder Tiny+ B73-150h

B73: the tiniest recorder!*

Owing to many years of experience in developing and manufacturing professional audio recording devices with extreme characteristics, we managed to produce Edic-mini Tiny+ B73, the size of which amounted only 46x14x6 mm, with the weight of 7 grams. In spite of a tiny case, the device combined the characteristics of a professional device, namely: high recording quality and broad opportunities.

Modifications: B73-150h (in the mode 8kHz, without compression).

Main characteristics:

• Due to the miniature size and light weight the device is very mobile and easy to use.

• The recorder's microphone is distinguished by high sensitivity and low noise level providing professional audio recording from up to 12 meters.

• Low power consumption: in spite of tiny dimensions the recorder is able to operate continuously in record mode for 10 hours.

• The device is extremely simple to use: recording is easily and quickly activated using a slide switch.

• B73 supports the system of digital markers: inaudible markers are added to the record allowing it to identify the record’s time and date as well as the recorder’s type and its serial number; and the attempts to modify it.

• Application of the USB 2.0 adapter allows it to quickly upload records onto the PC.

• With the help of special software the user can easily adjust the quality and time of recording, enable and configure professional functions depending on the surrounding conditions and in accordance with the requirements.

Main functions:

• High-quality audio recording without signal's compression

• 4 GB of built-in memory, or up to 150 hours of recording time (in the mode 8kHz, without compression)

• 10 hours of continuous operation from RL43 battery

• Recording is enabled with Switch, Voice Activation System (VAS), or daily and once timers

• LED Indication of the recorder's operation

• Linear and circular record modes

• The system of digital markers, allowing it to determine the authenticity of record

• High-speed USB 2.0 (up to 7 Mb/s)

• Built-in clock and calendar

Additional options

To operate the recorder an updated version of the RecManager program is used, which functions allow it to:

• playback, upload to the PC, edit and erase records

• configure recording, and set the desirable ratio of quality/duration

• connect and configure optional functions and options of the recorder (timers, VAS etc)

• playback records directly from the recorder without uploading them to the PC

• cut and perform operations with the selected part of record

• select and playback only the desirable record parts performed with VAS omitting parts without any voice information

• built-in tips make operation of the program very easy and convenient.

To process sound and work with records we have developed the SoundProcessor program intended to:

• process records to improve their intelligibility, suppressing noise etc

• the option to automatically transform records to text using Google technology.

*among the recorders produced by Telesys Ltd.

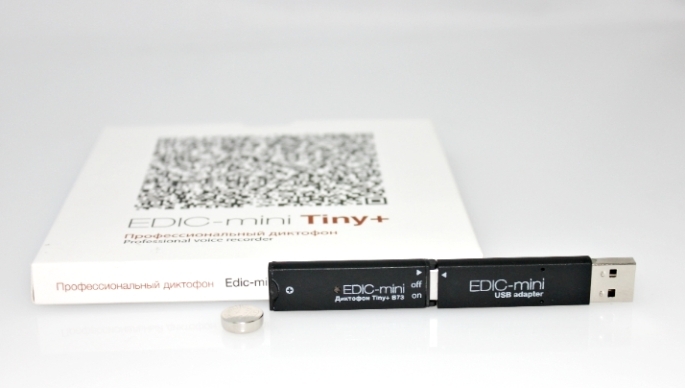

Delivery set:

Audio recorder

USB 2.0 adapter

LR43 Battery

Instructions
